Automatic Corrugated Cardboard Laminating Machine for Flute Laminating and Mounting

Name: Automatic Corrugated Cardboard Laminating Machine for Flute Laminating and Mounting
Brand: Tongbao
Price: 18 USD

Quality Automatic Corrugated Cardboard Laminating Machine for Flute Laminating and Mounting for sale

Type : Laminating Machine

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, corrugated, pack, carton pack, pack company, package

Showroom Location : Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan,

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Motor, Gear, Pump

Condition : New

Application : Beverage, Chemical, Commodity, Food, Machinery & Hardware

Packaging Type : Cartons, Film

Packaging Material : Paper, Plastic

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380v

Place of Origin : Hebei, China

Brand Name : Tongbao

Dimension(L*W*H) : 12.5m

Weight : 68000 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

After-sales Service Provided : Engineers available to service machinery overseas

Machine name : Automatic High Quality Corrugated Cardboard Laminating Machine

Model : BZJ-1600

Max Paper Size : 1600*1100

Min paper Size : 350*350mm

Laminator precision : ±1.5mm

Max speed : 100 m/min

Total power : 13 kw

Machine length : 12.5 m

Price : $18,600.00/sets >=1 sets

MOQ : 1pc

Contact Now

Automatic High-Quality Corrugated Cardboard Laminating Machine

Product Description

Main Characteristics:

1. Automatic Flute Laminating machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a large range of paper, high precision while remaining the features of easy operation and maintenance.
2. The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
3. Balancetested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine runs at low noise with high precision.
4. The machine adopts automatic glue supply and recyclable glue circulating system.

5. Self-developed high-strength feeder complicant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
6. All material are inspected according to standard and the key parts such as the harmonic gear and bearings are imported ones.
7. The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet.
8. It can do three or five layer board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.

Parameters

Technical Parameters:

Model	KCS-14145	KCS-16145
Maximum size(W×L)	1430×1440mm	1630×1440mm
Minimum size(W×L)	450×450mm	450×450mm
Laminate precision	≤±1.5mm	≤±1.5mm
Max Speed	150M/min	150M/min
Total power	22kw	25kw
Dimensions	15000 x 2250 x 2450mm	15000 x 2450 x 2450mm
Total weight	7500kgs	8500kgs

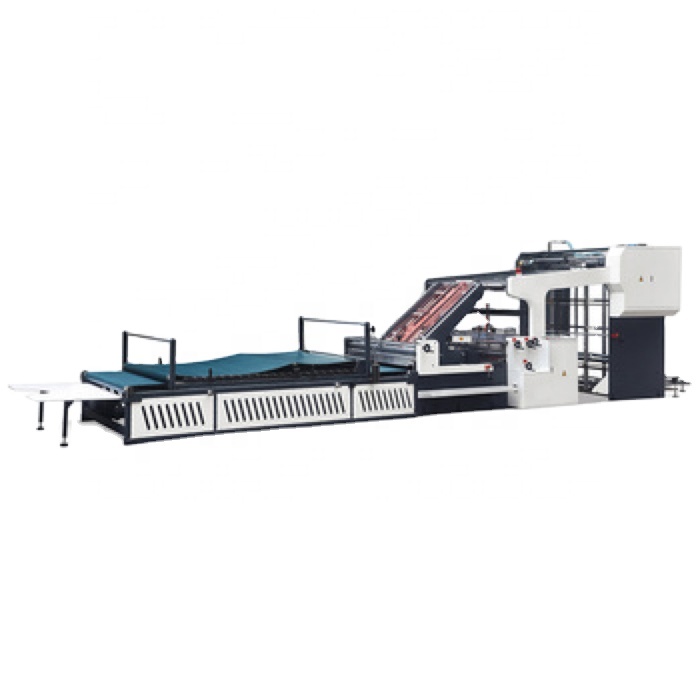

Main Image

Automatic Corrugated Cardboard Laminating Machine for Flute Laminating and Mounting

Corporate Profile

Cangzhou Tongbao Carton Machinery CO., LTD is professional enterprise to invent, develop and produce the carton machinery in North of China. Adhering to scientific and technical innovation from beginning to the end and consistent introducing, consuming and absorbing the advanced technology at home and abroad for 23 years. Our products are well appraised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.

Automatic Corrugated Cardboard Laminating Machine for Flute Laminating and Mounting

We sincerely cooperate with clients from all over the world and we will meet the demands of clients with better production quality and more complete after-sales service.
